How to Choose the Right Wheel Bolts For Your Car

Why Getting Your Wheel Bolts Right Matters

Fitting the wrong wheel bolts is not just a nuisance — it's a safety risk. The wrong thread pitch can strip your hub, the wrong seat type won't clamp correctly, and a bolt that's too short won't achieve the minimum thread engagement needed for a secure fit. This guide walks you through every dimension you need to check before buying.

Step 1: Match the Thread Size and Pitch

Wheel bolts are specified by thread diameter and pitch. The two most common standards you'll encounter are:

• M12x1.5 — 12mm diameter, 1.5mm pitch. Standard on most European vehicles including VW, Audi, BMW (older models), and Opel/Vauxhall.
• M12x1.25 — 12mm diameter, 1.25mm pitch. Standard on most European vehicles including Fiat, certain Jeeps and Alfa Romeo.

• M14x1.5 — 14mm diameter, 1.5mm pitch. Common on VW, Audi, Mercedes-Benz, and many modern European platforms.
• M14x1.25 — 14mm diameter, fine 1.25mm pitch. Found on newer model BMW's, Toyota Supra, and Mini Cooper models.

Check your vehicle's owner manual or measure an existing bolt with a thread pitch gauge. Never guess — cross-threading a mismatched bolt into an alloy hub can cause irreparable damage.

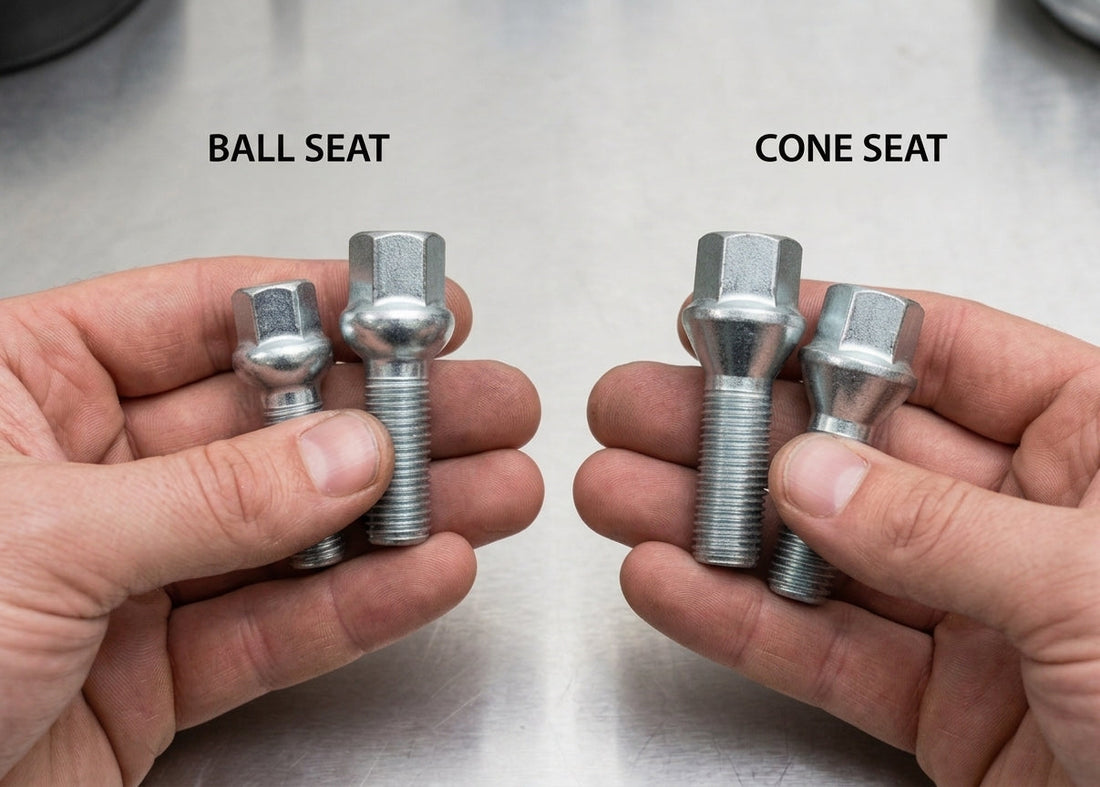

Step 2: Identify the Correct Seat Type

The seat is where the bolt contacts the wheel. There are two main seat types, and using the wrong one will result in incorrect clamping force and potential wheel loss:

• Cone (tapered) seat — The bolt has a conical taper, typically at 60°. This is the most common type for OEM steel and aftermarket alloy wheels.
• Ball (radius) seat — The bolt has a rounded spherical contact surface. Required by many OEM alloy wheels, particularly on VW Group vehicles.

Check the seat pocket on your wheel — a flat-bottomed cone pocket will not properly accept a ball-seat bolt, and vice versa. Browse our Wheel Bolts collection which includes both cone and ball seat variants.

Step 3: Choose the Correct Thread Length

Thread length determines how many threads engage with the hub. The minimum safe thread engagement for steel hubs is approximately 1× the bolt diameter (e.g., at least 12mm of engagement for an M12 bolt). For aluminium hubs, aim for 1.5× the diameter.

Thread length also matters when fitting wheel spacers — if you add a 15mm spacer, you need a bolt with at least 15mm more thread length than your standard bolt. Extended wheel bolts (40mm or 50mm thread length) are available in our range for exactly this application.

• 25–30mm thread length — Standard OEM replacement, no spacers.
• 40mm thread length — For thin spacers (up to ~15mm).
• 50mm thread length — For thicker spacers (15–25mm).

See our range of extended bolts: M12x1.5 Extended Cone Seat (50mm) and M14x1.5 Ball Seat Extended (50mm).

Step 4: Verify the Hex (Wrench) Size

Most wheel bolts use a 17mm hex, which matches the standard lug wrench supplied with most vehicles. Some bolts — particularly M14x1.25 variants — use a 19mm hex. Confirm your socket size before ordering, especially if you are replacing individual bolts to match an existing set.
